[sdiy] Slide pot cleaning

[chris]

When I opened some slider pots for cleaning a couple of years ago, I
didn't bend the lugs back - I soldered a stiff wire across the bottom of
the case, in order to close it. That way the lugs won't break from
fatigue if the procedure needs to be repeated some day.


Chris


On 29/04/2026 01:30, Adam (synthDIY) wrote:
> I tackled this a few years ago, HTH
>
>

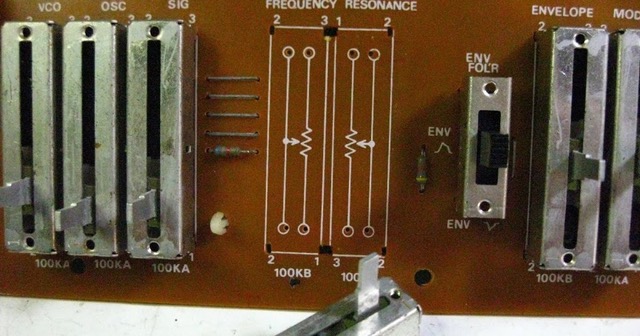

> IMG_6582.jpeg
> Roland SH-09 slide pot rehab
> <https://mezzoauto.blogspot.com/2017/05/roland-sh-09-slide-pot-rehab.html>
> mezzoauto.blogspot.com
> <https://mezzoauto.blogspot.com/2017/05/roland-sh-09-slide-pot-rehab.html>
>
> <https://mezzoauto.blogspot.com/2017/05/roland-sh-09-slide-pot-rehab.html>
>
>
>
> A
>
>
>> On 28 Apr 2026, at 21:53, rburnett at richieburnett.co.uk wrote:
>>
>> Can anyone recommend a good process for cleaning dust our of slide
>> potentiometers on an old Roland SH-09?
>>
>> The synth was stored underneath a bed in the spare room when we moved
>> house about ten years ago, and I *thought* it had a dust cover over
>> it!  It turns out it didn't (>.<)  and the slide pots are in quite
>> bad shape now.
>>
>> The synth is functional but the sliders feel scratchy and there is
>> obviously intermittent electrical contact because cutoff, LFO rate,
>> etc jump around a lot when the sliders are adjusted.  The slide
>> switches are okay, and the keys aren't too bad after a bit of use.
>>
>> I've removed the front panel and also found that there is some sort
>> of black felt/foam sheet that was obviously originally meant to be a
>> dust shield for the slide pots.  The problem is that this material
>> has become brittle and literally crumbles upon touching.  Can anyone
>> recommend a good material to replace this with?
>>
>> If I can fix the pots with a squirt of some magic spray that would be
>> fantastic, but I'm also prepared to de-solder then and carefully open
>> them up for cleaning if that is what is required.  I would rather
>> take time to do the job properly, but not sure what is the best way
>> to proceed?  I have access to a dry compressed-air line, dish soap,
>> cotton buds, Isopropyl alcohol, acetone, silicone grease,
>> soldering/de-soldering tools, etc, but don't want to risk making the
>> problem worse without asking for advice first.
>>
>> Thanks in advance for any advice,
>>
>> -Richie,
