[sdiy] GRP Genesi

[Tom Wiltshire]

Isn't it just the typical adding-up-a-load-of-octave-squarewaves to make a staircase "ramp" waveform? 6 bits in this case, iirc.

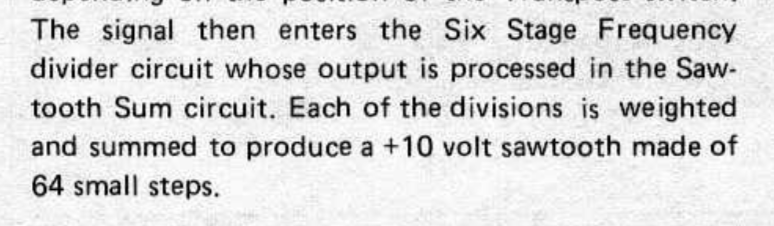

Ah, yes, here it is, from the service manual:



> On 6 Jul 2026, at 13:01, Mike Bryant <mbryant at futurehorizons.com> wrote:
>
> Actually one of the cleverest bits is probably converting the down-scaled squarewaves to sawtooths whilst keeping the levels consistent across the whole frequency range.  No mention of how they did they - presumably by programming a constant current source with the key and octave number ?
> From: Synth-diy <synth-diy-bounces at synth-diy.org> on behalf of Roman Sowa via Synth-diy <synth-diy at synth-diy.org>
> Sent: 06 July 2026 12:06
> To: synth-diy at synth-diy.org <synth-diy at synth-diy.org>
> Subject: Re: [sdiy] GRP Genesi
>
> At first glimpse, just looking at block diagram, it looks like typical
> PLL, but instead of phase comparator it uses F-to-V conversion and
> voltage comparator. Same divider ratio is used in the feedback as in the
> vaweform output, so the VCO works only within 1 octave while overall
> output spans over many octaves.
>
> Roman
>
> W dniu 2026-07-05 o 11:26, Neil Johnson via Synth-diy pisze:
> > Michael E Caloroso wrote:
> >
> >     US 3,930,429
> >
> >
> > Don did a write-up of it here:
> > https://till.com/articles/arp/patents.html#US03930429 <https://till.com/articles/arp/patents.html#US03930429>
> > <https://till.com/articles/arp/patents.html#US03930429 <https://till.com/articles/arp/patents.html#US03930429>>
> > Very weird architecture indeed!
> >
> > Neil
> >
> > ________________________________________________________
> > This is the Synth-diy mailing list
> > Submit email to: Synth-diy at synth-diy.org
> > View archive at: https://synth-diy.org/pipermail/synth-diy/ <https://synth-diy.org/pipermail/synth-diy/>
> > Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy <https://synth-diy.org/mailman/listinfo/synth-diy>
> > Selling or trading? Use marketplace at synth-diy.org
> ________________________________________________________
> This is the Synth-diy mailing list
> Submit email to: Synth-diy at synth-diy.org
> View archive at: https://synth-diy.org/pipermail/synth-diy/ <https://synth-diy.org/pipermail/synth-diy/>
> Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy <https://synth-diy.org/mailman/listinfo/synth-diy>
> Selling or trading? Use marketplace at synth-diy.org
> ________________________________________________________
> This is the Synth-diy mailing list
> Submit email to: Synth-diy at synth-diy.org <mailto:Synth-diy at synth-diy.org>
> View archive at: https://synth-diy.org/pipermail/synth-diy/ <https://synth-diy.org/pipermail/synth-diy/>
> Check your settings at: https://synth-diy.org/mailman/listinfo/synth-diy <https://synth-diy.org/mailman/listinfo/synth-diy>
> Selling or trading? Use marketplace at synth-diy.org <mailto:marketplace at synth-diy.org>
