Hi Jonathan,

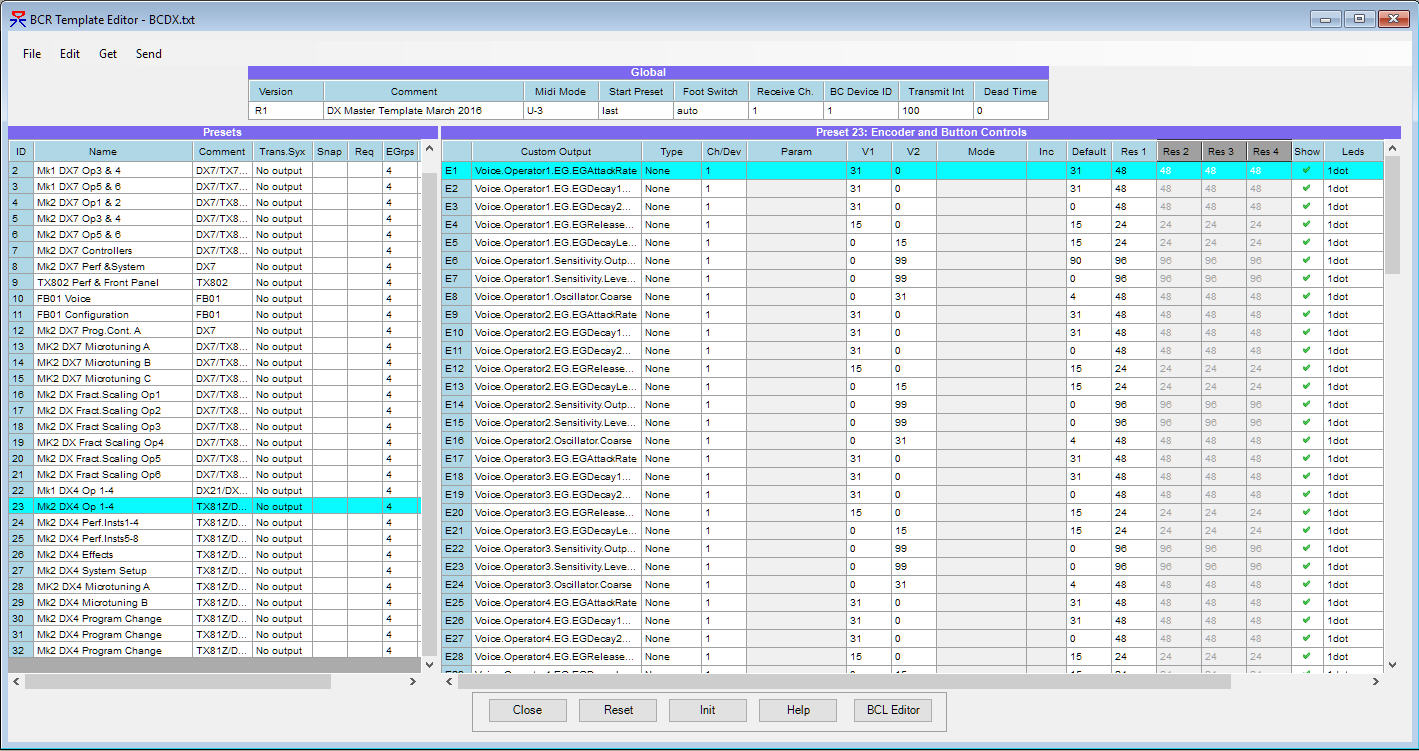

The attached screenshot may help. It shows the preset settings for my DX Master Template as loaded in DXM's BCR Editor.
As you can see MK2 4Op DX/TX synths are controlled from Presets 23 to 32 with Preset 23 controlling voice parameters.
Also shown in the shot are the custom output settings for the selected Preset, Preset 23. As you can see in DXM the custom output settings are displayed in (fairly) plain English.
As far as I can see the template is working fine with my TX81Z and the BCR2000. If the BCR is used in conjunction with DXM you need to set your MIDI devices so that DXM's MIDI input is set to BCR2000 Port 1 and MIDI output to the TX81Z's MIDI device.
Set up in this way you can see patch parameters and graphical editors change in real-time and you can hear the changes as you edit.
DXM works fine on the Mac with a PC Emulator such as Parallels Desktop.
Hope that gets you started.
Jon
From: bc2000@yahoogroups.com
Date: Mon, 29 Feb 2016 15:55:52 -0500
Subject: Re: [bc2000] Re: New file uploaded to bc2000
I blame apple for any syntax or spelling errors in this email.
Hi,
Thanks for the feedback.
How did you load the presets ? If it was with my DX manager app. then you should be able to see all the preset settings in its BCR editor.
You can download DXM from my site at http://www.fm-alive.com/pages/dxm.aspx.
There's help on setting up the BCR editor - just press F1 when it loads.
HTH
Jon
http://www.fm-alive.com
To: bc2000@...m
From: bc2000@yahoogroups.com
Date: Mon, 29 Feb 2016 10:41:17 -0800
Subject: [bc2000] Re: New file uploaded to bc2000
Hi there, Jonfirst thanks for creating and posting such a helpful resource with the presets you uploaded.ive been trying to get my BCR working with my TX81z but something just doesn't seem to be working.when i have the bcr plugged into the TX81z it will give me a "midi data error" but never seems to control the unit after clearing the error.i do have exclusive enabled and memory protect off.i downloaded and installed your presets to my bcr and they all seem to be there but cannot figure out which one is for the TX81z.is there any additional insight you could provide me in my quest?thanks again and all the best!
