Korg Radias - checksum error

Korg Radias - checksum error

2013-10-04 by <euklides69@...>

Hi

I'm new to this forum so please forgive me if I'm doing something against your forum posting rules.

I have problem with my KORG Radias which during startup, after the loading progress bar and the Logo of Radias hangs. The logo remains on the screen and
a text appears at top of the screen saying : DRUM Checksum Error!!!.
Synth is then totaly frozen and doesn't respond to anything.
I updated the firmware to version 2.0 but this doesnt change anything. I found also test menu, which (for FLASH memory test) says: SYS ok, USR ok, PCM checksum error!.

I tried contact Korg Service, Korg Product and Customers support. All are saying that this product is no longer supported and they have no parts for it. I also tried to find synth repair service that can help me but this was even more challenging.
Looks like nobody (even authorized services I contacted ) really worked on that specifc synthesizer. Most technicians I talked to stated they have to contact KORG for diagnosis.

Somebody from Korgforums recommended me to reload flash with factory PCM still sound data. I don't know where to get such thing. Korg support page provides for Radias only firmware (no additional binary files there ) I also ask for that Korg but no answer for this at all.

I dont know if I m so unlucky or really this synth is coursed and nobody wants to touch it even its vednor. I'm starting loosing my faith that this synth ill ever work again.

Can you help me and advice what to do ?

Re: [vintagesynthrepair] Korg Radias - checksum error

2013-10-04 by Daniel Forró

I don't know and can't help, but just my guess:

Try to reseat all IC's in sockets, maybe those with written samples
are socketed... Maybe it's just a bad contact...

Check also if components near that memory chips are OK.

If the problem is really in the sample memory chips, it's a
questionable if repair is possible. I don't think Korg will publish
such data (despite the fact they are probably somehow coded and not
usable as samples), end even when they would there's no easy way how
to reload PCM memory (probably it's not included in standard OS reload).

In such case probably the repair will ask to get data from another
healthy instrument and write them into the chip (better new one, same
type as that one used in the instrument) with some programmer. That
probably means also removing good chip, read it, and return. Probably
chips are soldered so it's not so easy.

So your situation doesn't look well concerning the repair of this
instrument...

Daniel Forro

On 4 Oct, 2013, at 11:20 AM, <euklides69@...> <euklides69@...
Show quoted textHide quoted text
 > wrote:

> I have problem with my KORG Radias which during startup, after the
> loading progress bar and the Logo of Radias hangs. The logo remains
> on the screen and
> a text appears at top of the screen saying : DRUM Checksum Error!!!.
> Synth is then totaly frozen and doesn't respond to anything.
> I updated the firmware to version 2.0 but this doesnt change
> anything. I found also test menu, which (for  FLASH memory test)
> says: SYS ok, USR ok, PCM checksum error!.
>
> I tried contact Korg Service, Korg Product and Customers support.
> All are saying that this product is no longer supported and they
> have no parts for it. I also tried to find synth repair service that
> can help me but this was even more challenging.
> Looks like nobody (even authorized services I contacted ) really
> worked on that specifc synthesizer. Most technicians I talked to
> stated they have to contact KORG for diagnosis.
>
> Somebody from Korgforums recommended me to reload flash with factory
> PCM still sound data. I don't know where to get such thing. Korg
> support page provides for Radias only firmware (no additional binary
> files there ) I also ask for that Korg but no answer for this at all.
>
> I dont know if I m so unlucky or really this synth is coursed and
> nobody wants to touch it even its vednor. I'm starting loosing my
> faith that this synth ill ever work again.
>
> Can you help me and advice what to do ?

RE: Korg Radias - checksum error

2013-10-04 by <narfman96@...>

Not to worry! You're not spamming the group so you're in like flint.

I am worried about your Radias though. Your only bet may be John from Korgparts.com. I'm not sure if he can get a main board for you but if anyone can it will be him. He ordered a main board for my MicroSampler when Korg and none of their dealers would help. The only other problem will be cost and since it's special order there will not be any return.

From what you describe for a problem somehow the flash has been corrupted. I'm pretty sure this is what happened to the MicroSampler. The CPU is in interrupt mode bacause the DSP will not run. Watching it try to boot on my scope the flash for the DSP never does anything.



---In vintagesynthrepair@yahoogroups.com, <vintagesynthrepair@yahoogroups.com> wrote:

Hi

I'm new to this forum so please forgive me if I'm doing something against your forum posting rules.

I have problem with my KORG Radias which during startup, after the loading progress bar and the Logo of Radias hangs. The logo remains on the screen and
a text appears at top of the screen saying : DRUM Checksum Error!!!.
Synth is then totaly frozen and doesn't respond to anything.
I updated the firmware to version 2.0 but this doesnt change anything. I found also test menu, which (for FLASH memory test) says: SYS ok, USR ok, PCM checksum error!.

I tried contact Korg Service, Korg Product and Customers support. All are saying that this product is no longer supported and they have no parts for it. I also tried to find synth repair service that can help me but this was even more challenging.
Looks like nobody (even authorized services I contacted ) really worked on that specifc synthesizer. Most technicians I talked to stated they have to contact KORG for diagnosis.

Somebody from Korgforums recommended me to reload flash with factory PCM still sound data. I don't know where to get such thing. Korg support page provides for Radias only firmware (no additional binary files there ) I also ask for that Korg but no answer for this at all.

I dont know if I m so unlucky or really this synth is coursed and nobody wants to touch it even its vednor. I'm starting loosing my faith that this synth ill ever work again.

Can you help me and advice what to do ?

RE: Korg Radias - checksum error

2013-10-04 by <euklides69@...>

I think its time of second part of my sad story :)


Since I have enough desperation , some electronic background with PC mainboards repair , access to SMD rework station and eprom programmer I started looking for DIY solution.

I was able to find Korg Radias service manual.


Its has been posted on Korg forums.( link below - if this will help anybody)


https://www.dropbox.com/sh/1pmscfmrtp9ykdn/izuYC5TjWT
password is: "&radiasr" without the quotes


I obviously checked all the voltages and connectors. Everything seems to be exactly like service manual described. Looking at the CPU board schematics and CPU PCB itself i assumed that most suspicious parts are IC12 Flash memory , and IC27 SDRAM 128M.

Looking for cold solder joints I checked their traces for data and address bus. ICs voltages also have been checked. Everything seems to be ok. My best bet for know are either corrupted flash and (or) sdram working with that flash.

I already contacted Parts is Parts. Very nice people working there but unfortunately they have no electronics parts for my Radias at all (hence my later call to KorgUSA). I asked them if they can provide me programmed flash chip ( it has even part no in Korg parts catalog), whole CPU borad or even if they can program blank flash memory chip, which I was going to send them. I got no answer for this....

All the ICs are slodered on radias CPU board ( see links with PCB pictures)
I already ordered SDRAM chip and will try to replace it soon but honestly I doubt if this will help.

I have no access to working Radias CPU board or the one with non damaged flash. Therefore I cannot get copy of working flash. What I thought (since there is no other way visible on the horizon) is to order few blank flash chips (they are fairly cheap), desolder my existing flash from Radias, read it with eprom programmed and try to find area where chekcsum error is calculated. Fix that checksum (caculate it again and enter to bin code) program new flash chip, solder test scoket TSOP48 to CPU board and place there programmed flash chip.

I know it sounds desperate but I dont see any other way for now.

Do you thing this plan has any sens?
Can you advise me something based on your experience ?

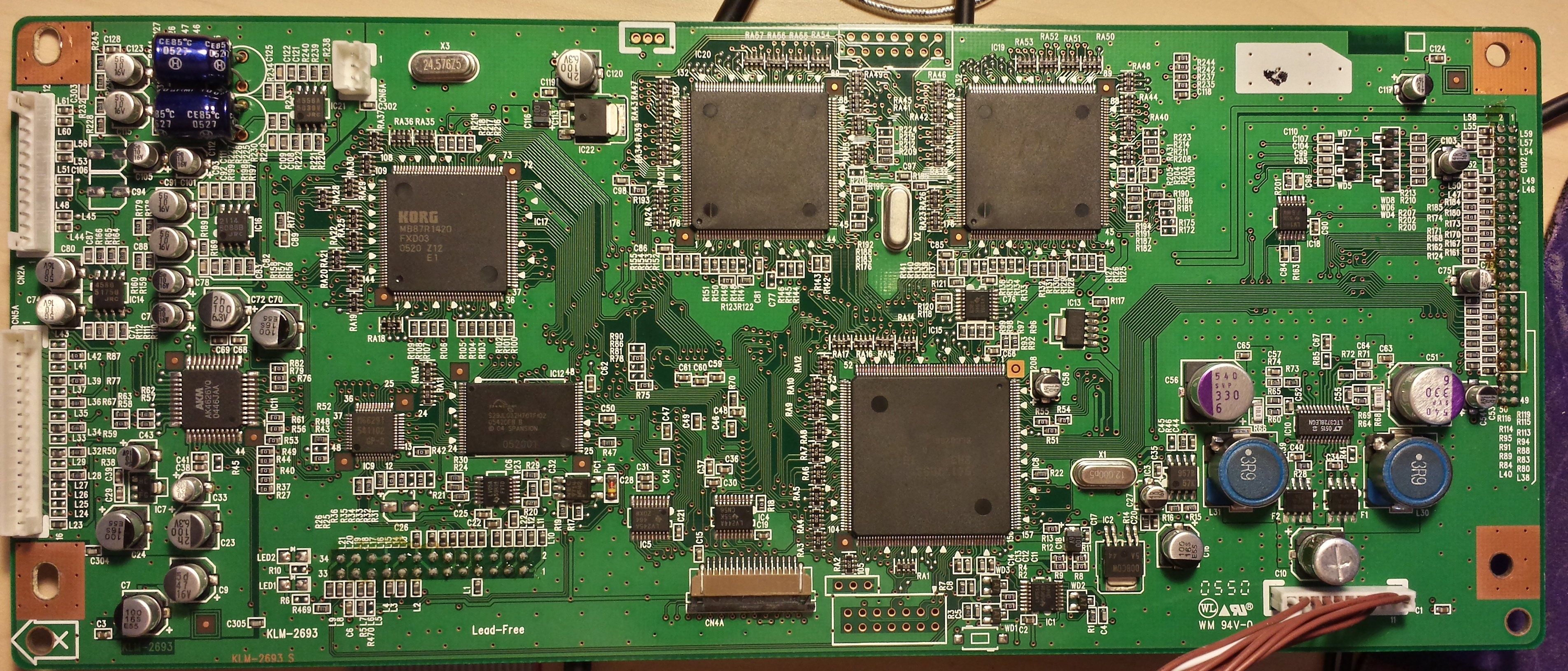

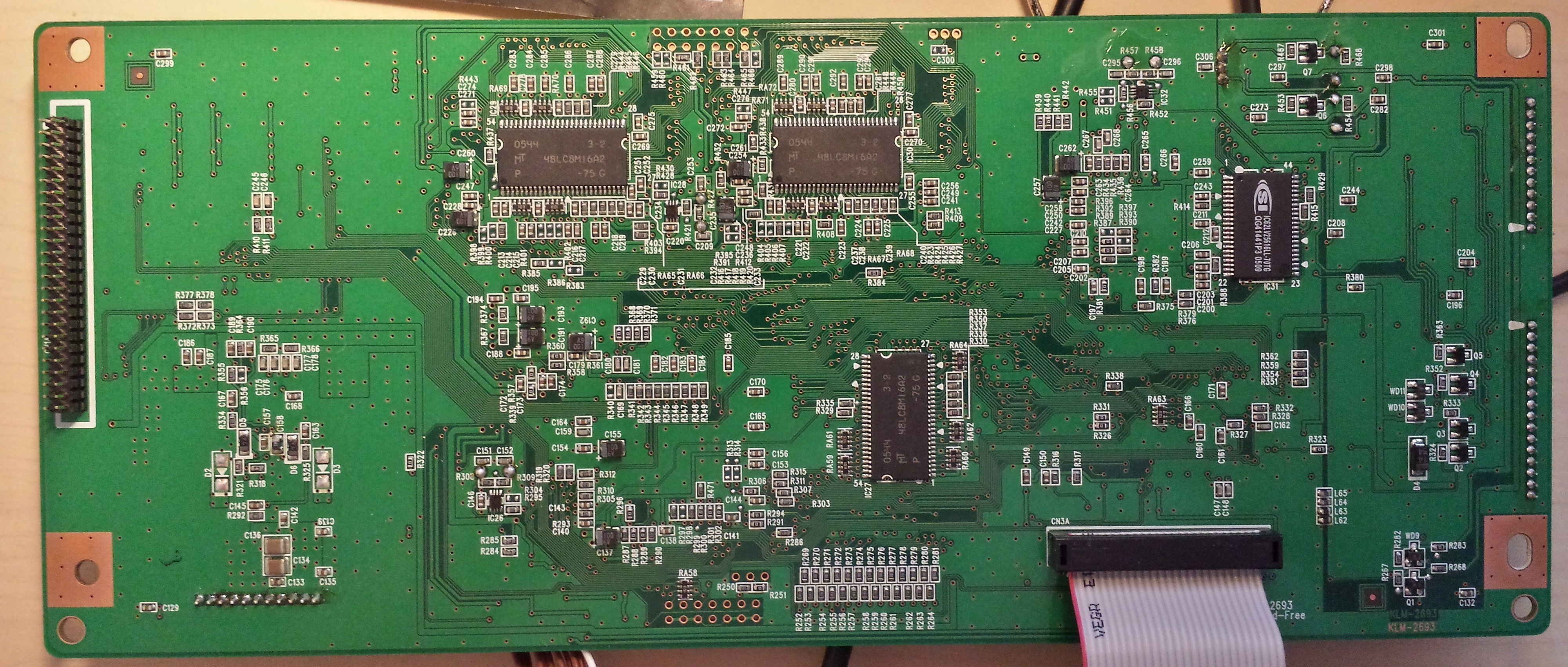

Radias CPU board pictures:
