Photos
Photos in The slow restoration of #851.
Album: The slow restoration of #851. Page 1 of 1.
| Album | Title | Preview | Description |
|---|---|---|---|

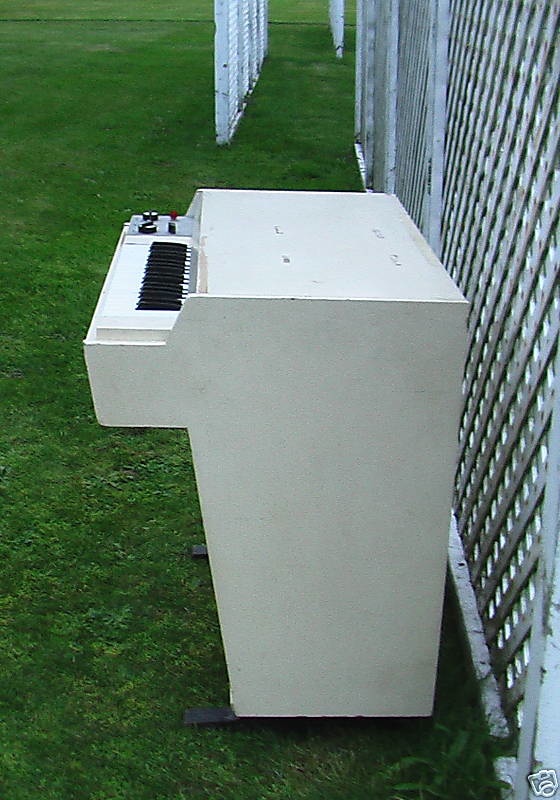

| The slow restoration of #851. | Ebay photo #1 2008. |
|
Wellington, NZ before traveling 18000+ kilometers to Stockholm. Water damaged cabinet refinished beige with a broom. Love it! |

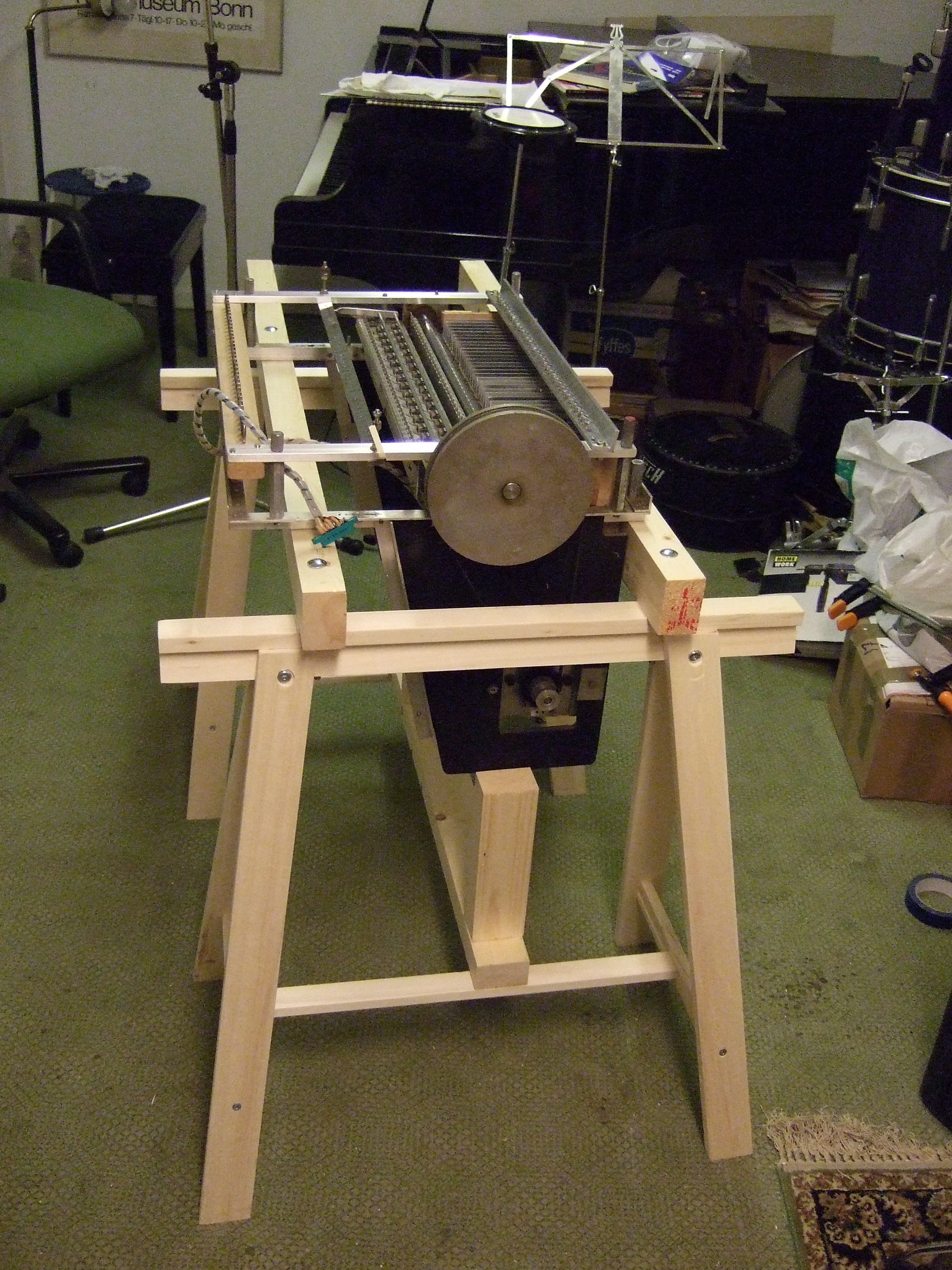

| The slow restoration of #851. | In the jig, courtesy of Ikea. |
|
My Stockholm rehearsal space with an old Steinway and some other stuff. |

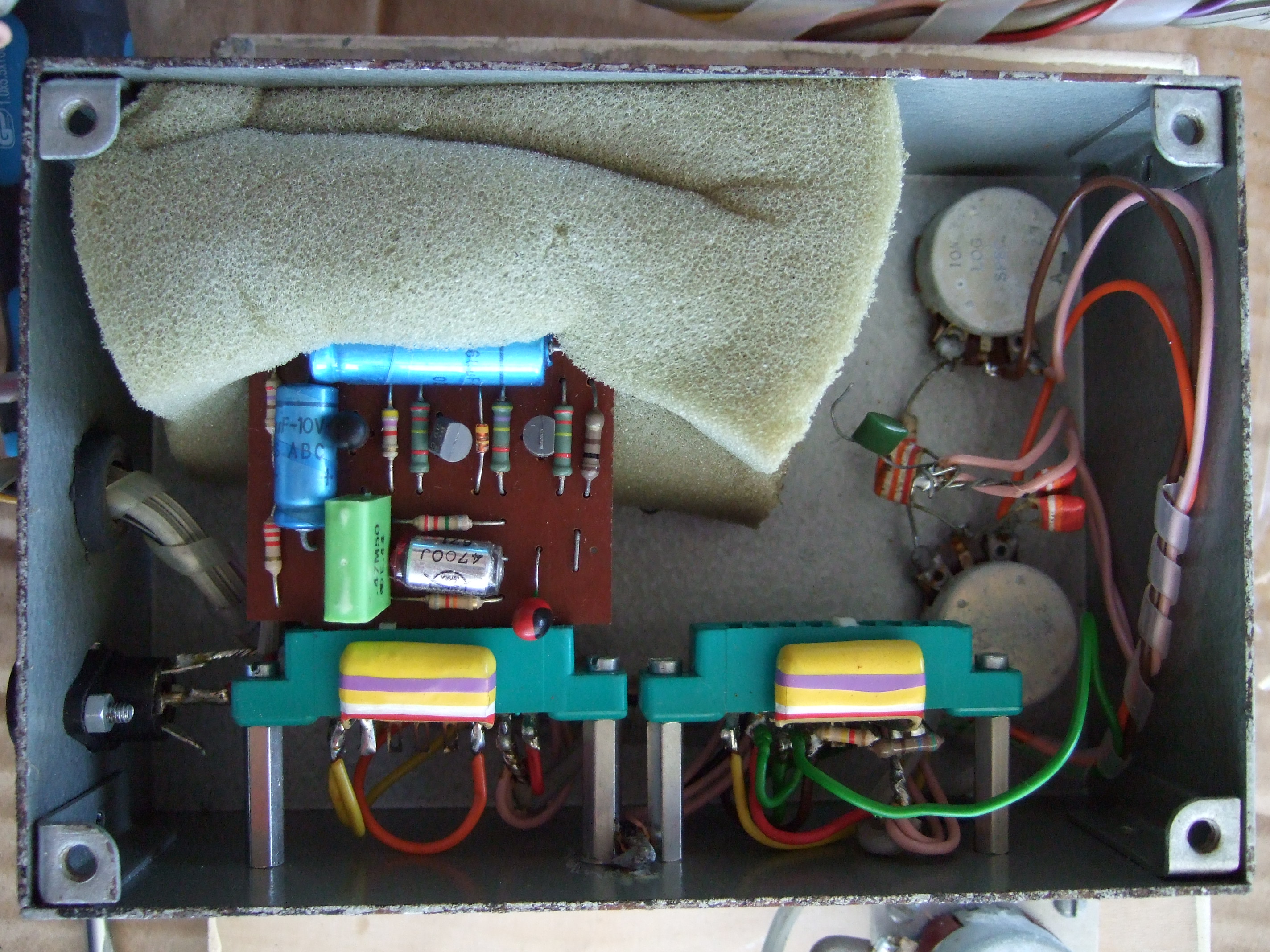

| The slow restoration of #851. | Anyone seen this mod before? |
|
Sounds fine but a bit quiet. |

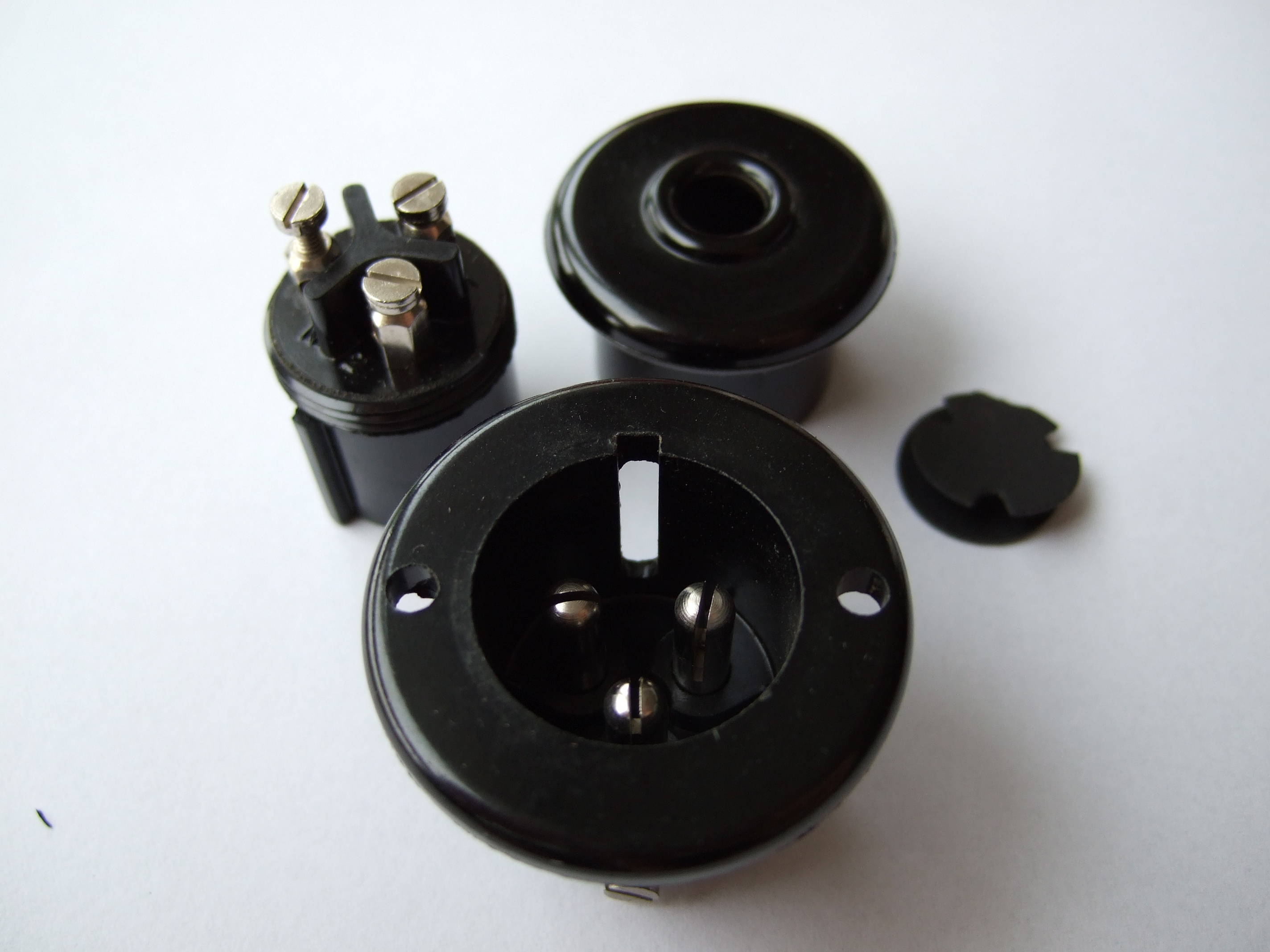

| The slow restoration of #851. | NOS Bulgin socket from ebay with .. |
|
split pins for better mains connection. |

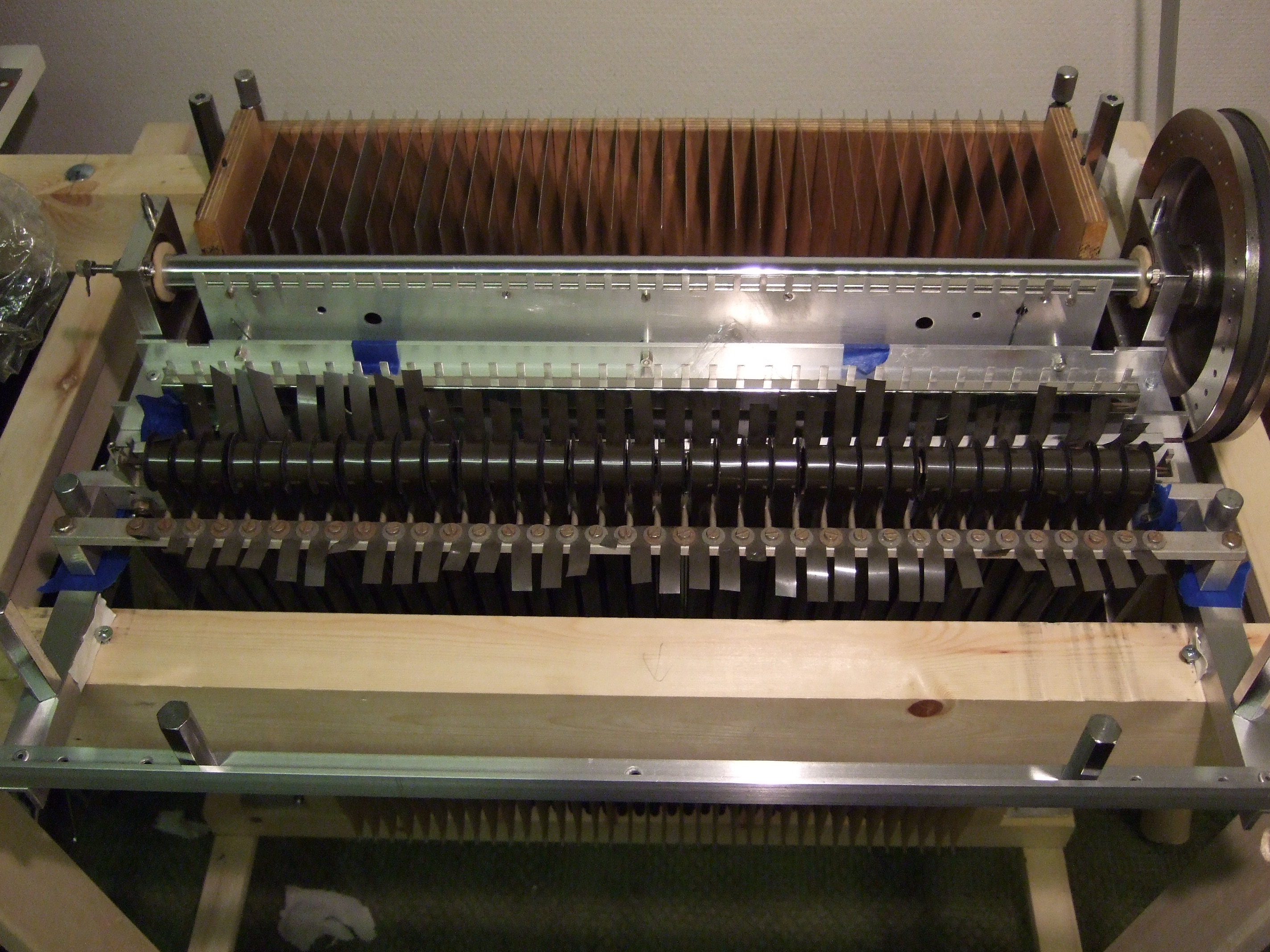

| The slow restoration of #851. | Before removing original tapes. |
|
|

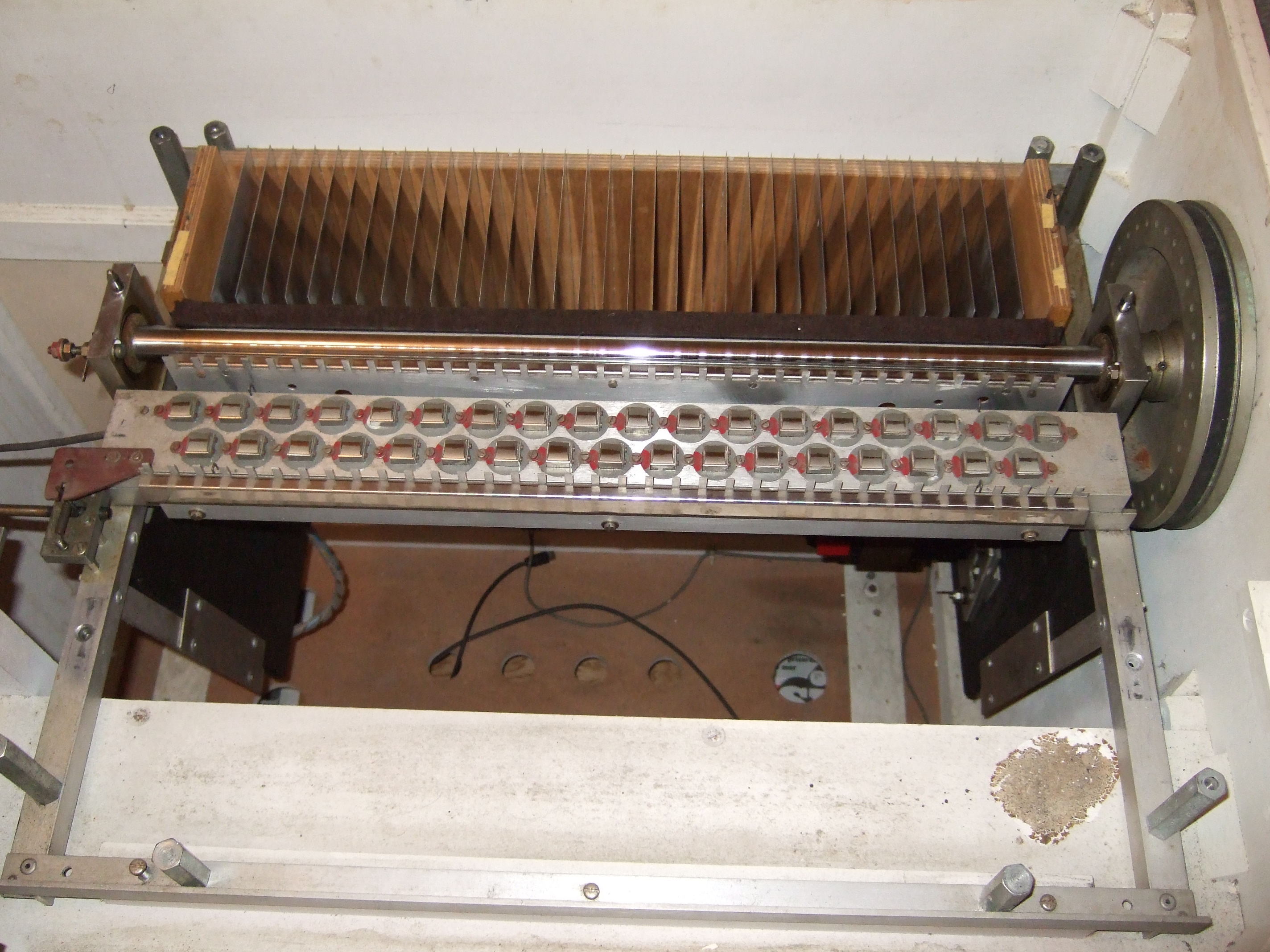

| The slow restoration of #851. | Before restoration. Very smelly.. |
|
Taking it apart is easy. Straightening it out and putting it back together is a whole different story.. |

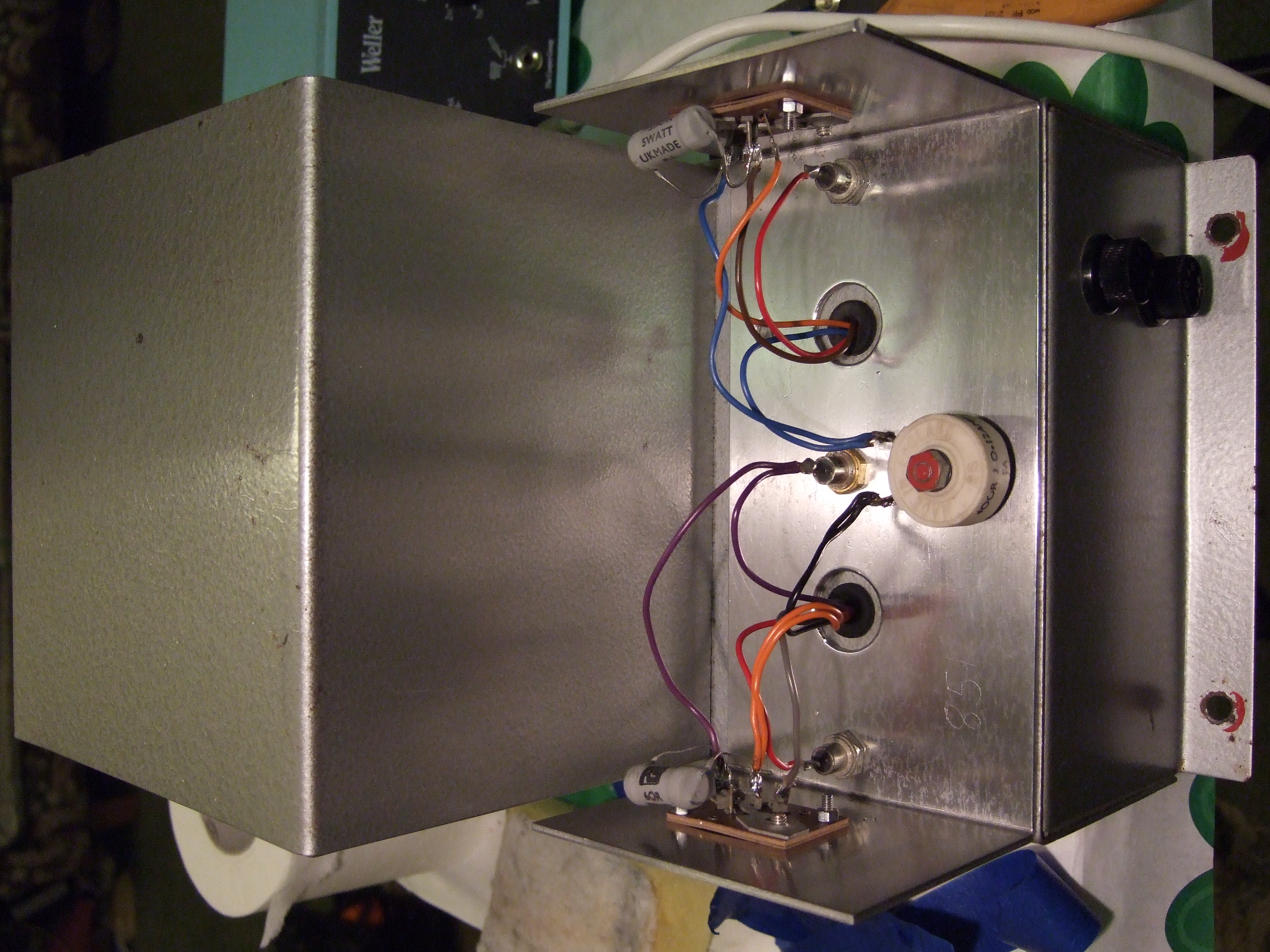

| The slow restoration of #851. | Actually rewired but I kept the.. |
|
components and some of the wiring for the original look. I also want to keep the renovation reversible if possible. No extra drilled holes etc. |

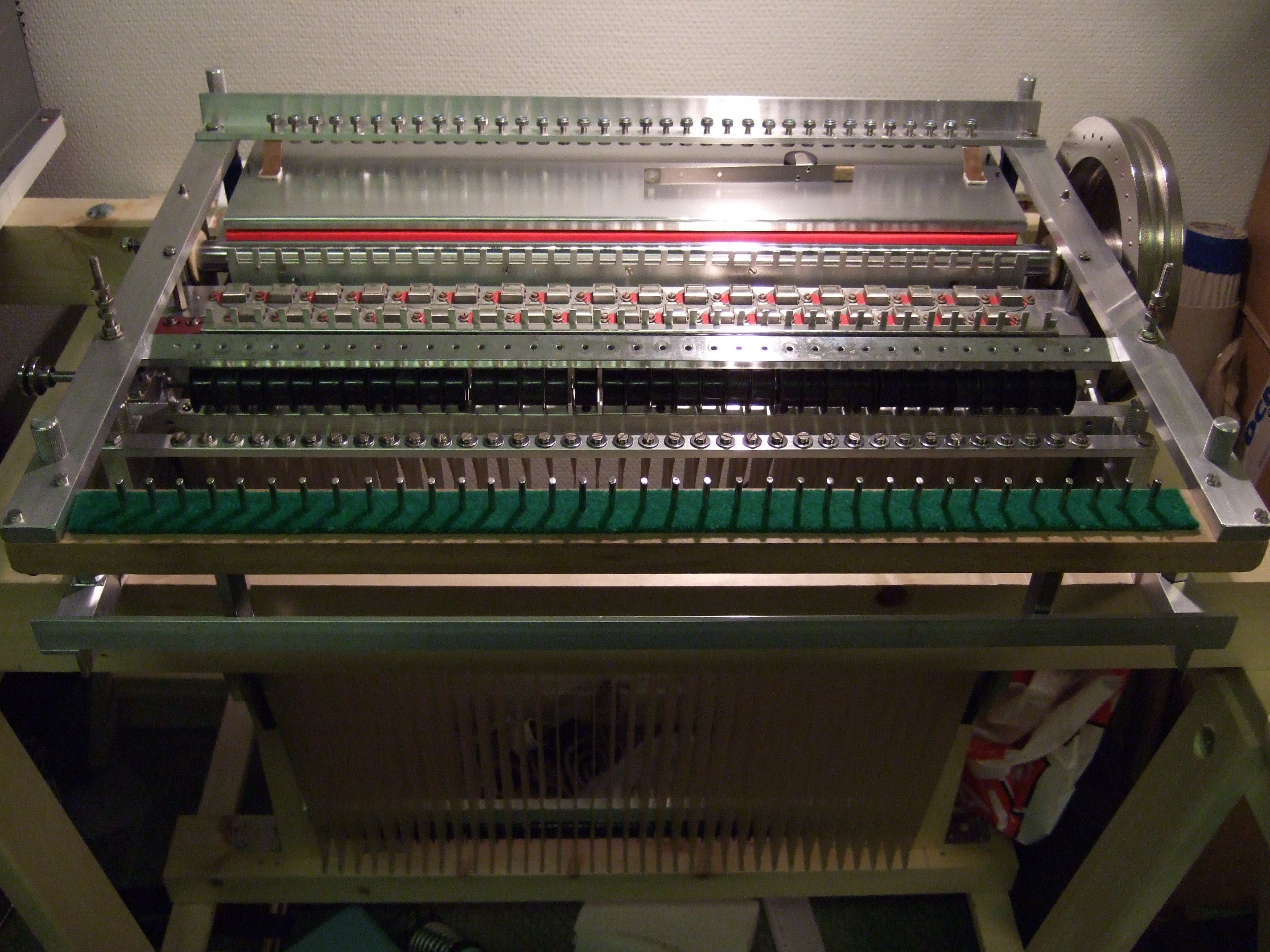

| The slow restoration of #851. | Putting things together for the third.. |
|
time and making sure that the tape path is straight. Check out the burn marks on the guide pin board. Managed to straighten it out eventually.. |

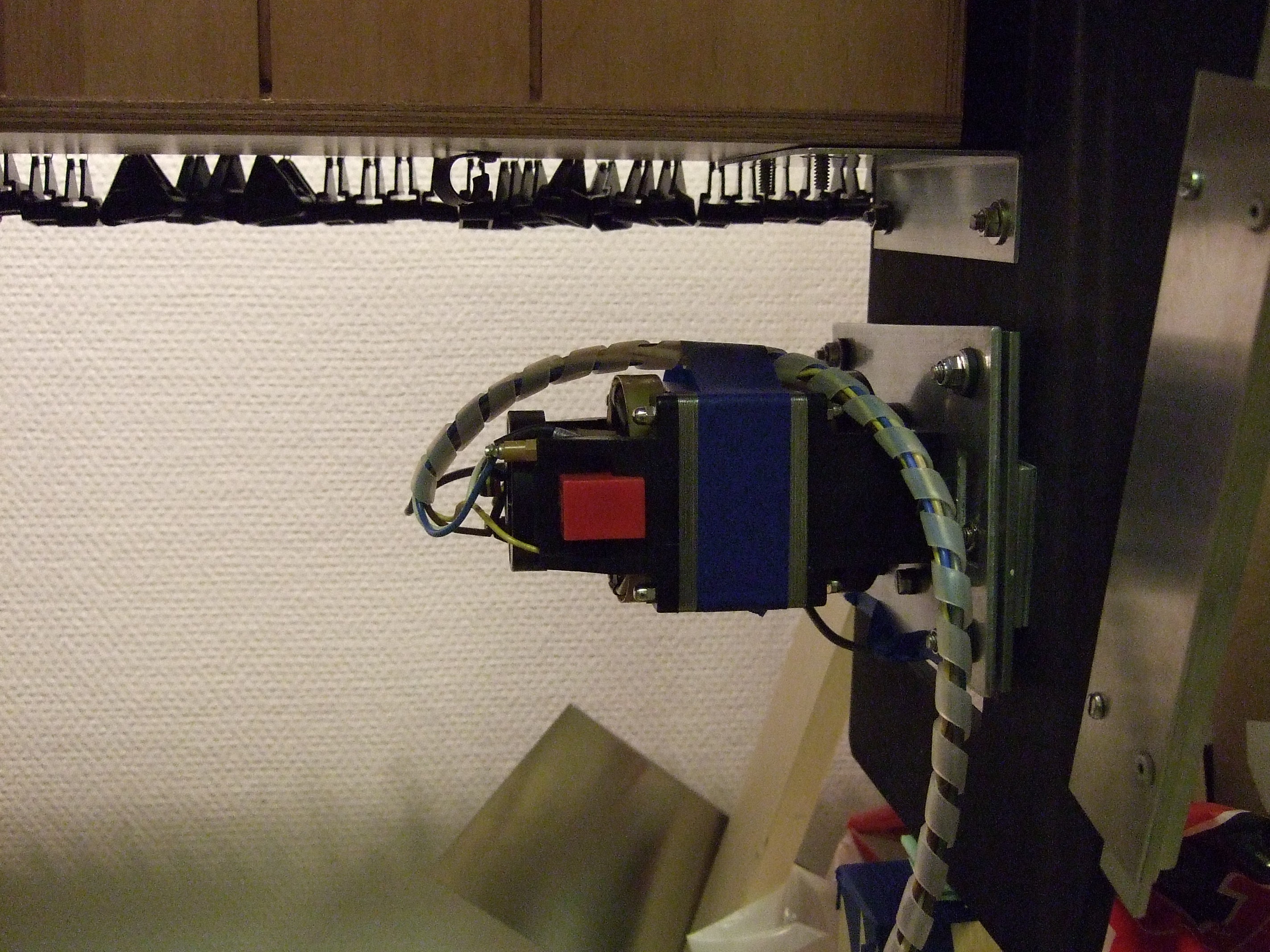

| The slow restoration of #851. | Managed to pull some of the wiring.. |
|
out of the motor by stepping on the cable.. Repairing that was hell. I'm using a special pure leslie oil for the glide bearings. |

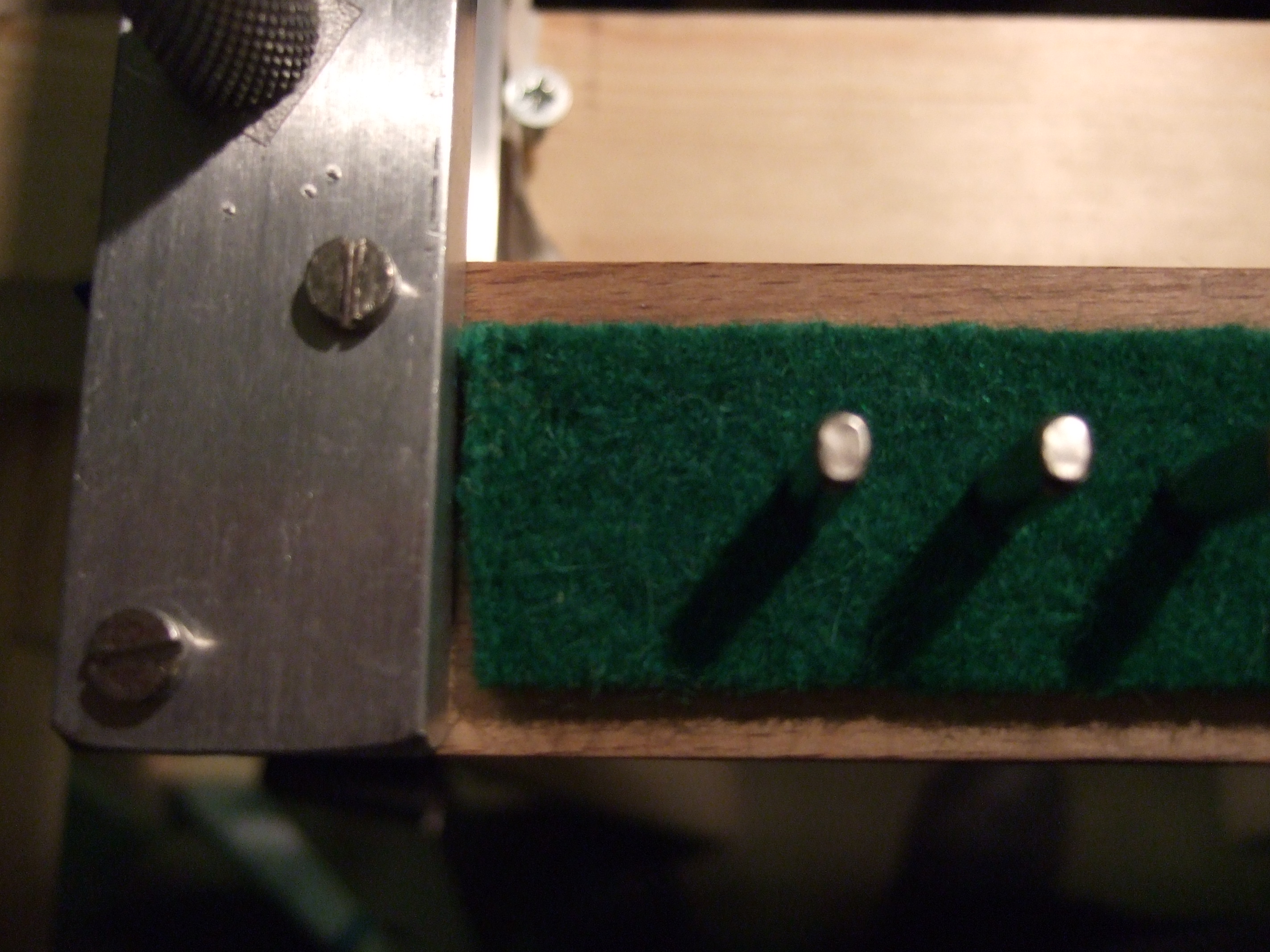

| The slow restoration of #851. | Original felt. |
|
Now replaced with a thinner strip from Frank which makes pad adjustment easier. |

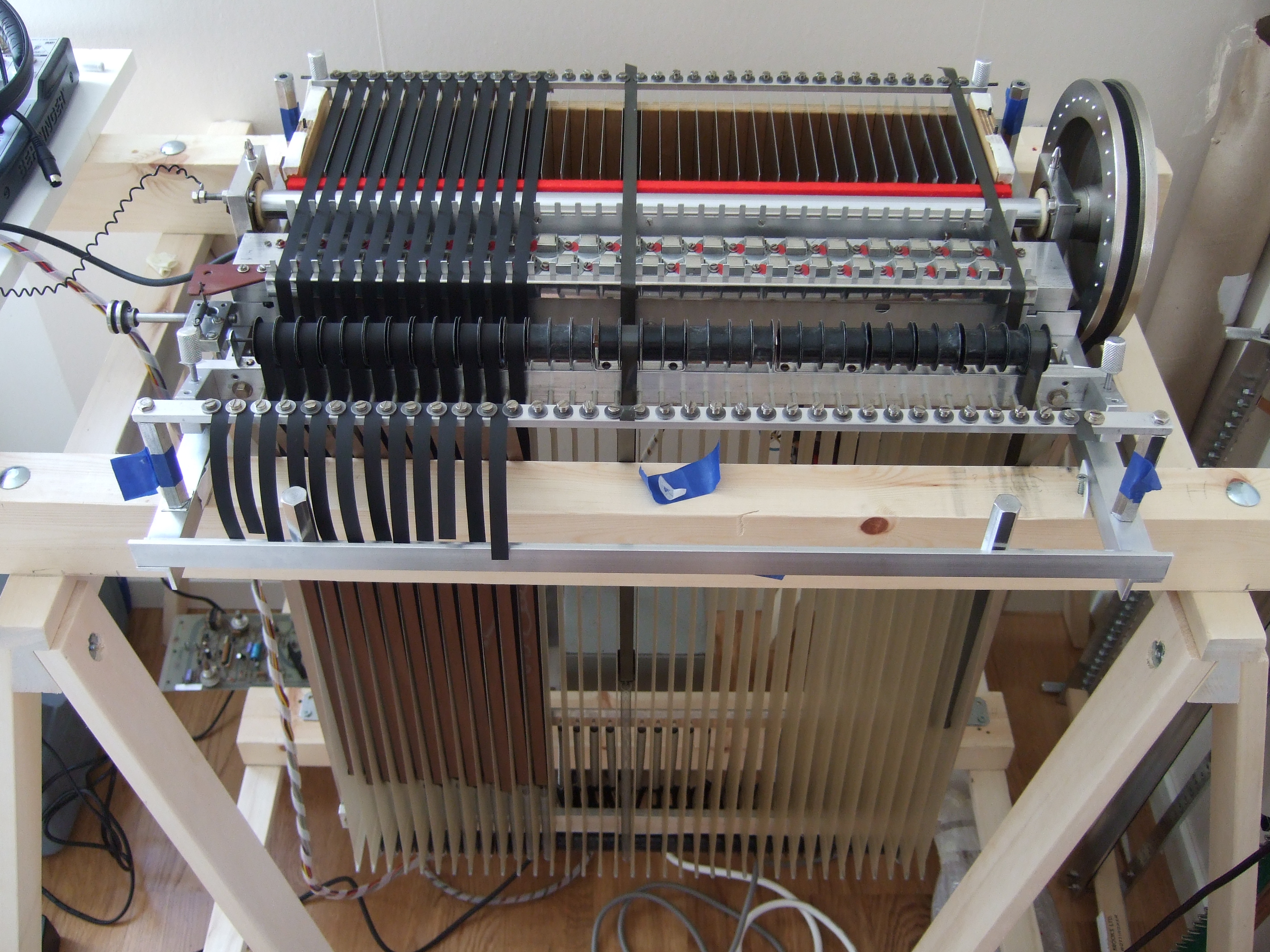

| The slow restoration of #851. | frame #2: vibes, 8 choir, mkII brass |
|
#1 has flute, 3 violins, cello. At least 4 more to come. |

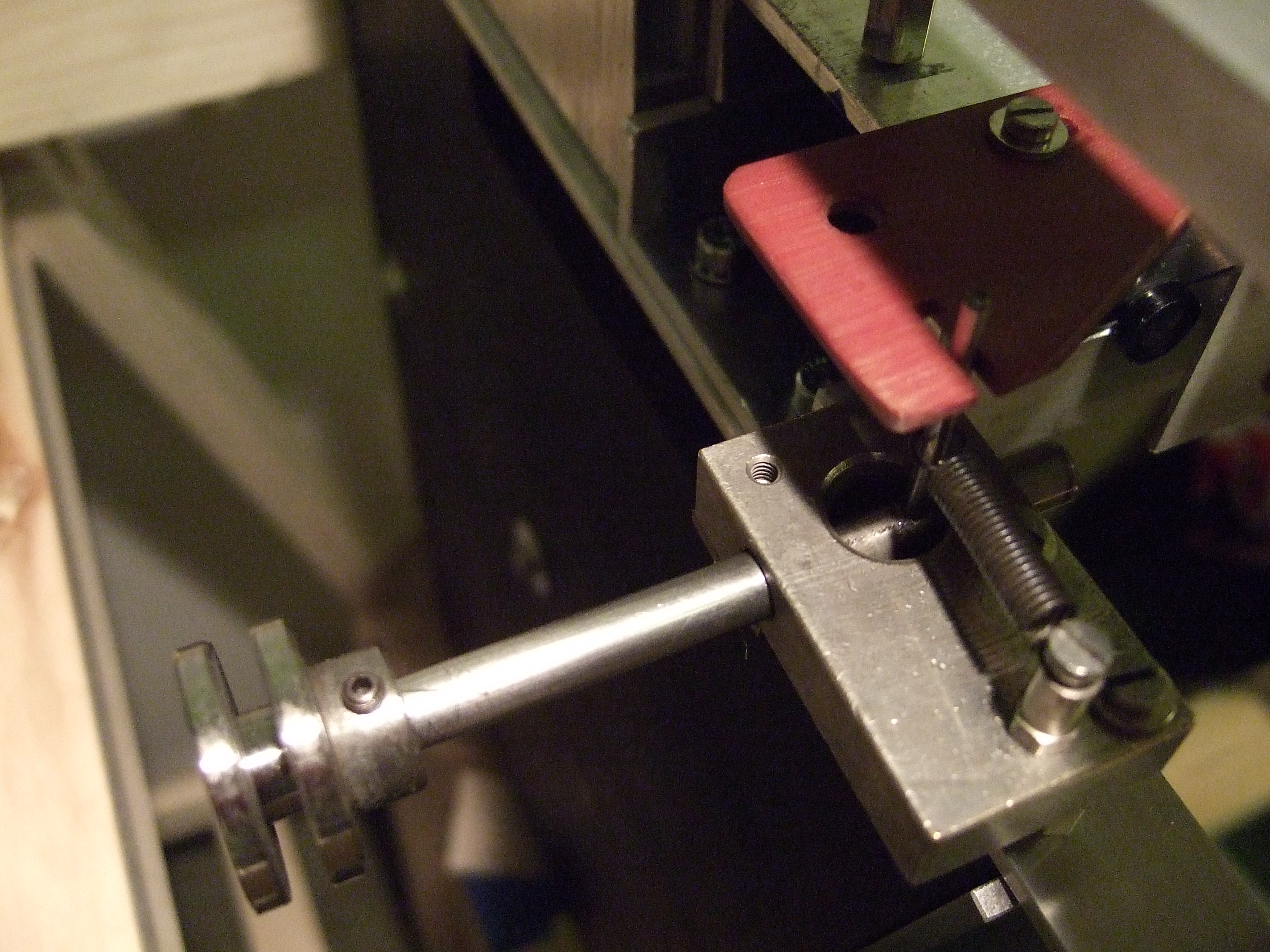

| The slow restoration of #851. | Be careful when cleaning the brass |
|
track selector or the nickel plating will come off. |

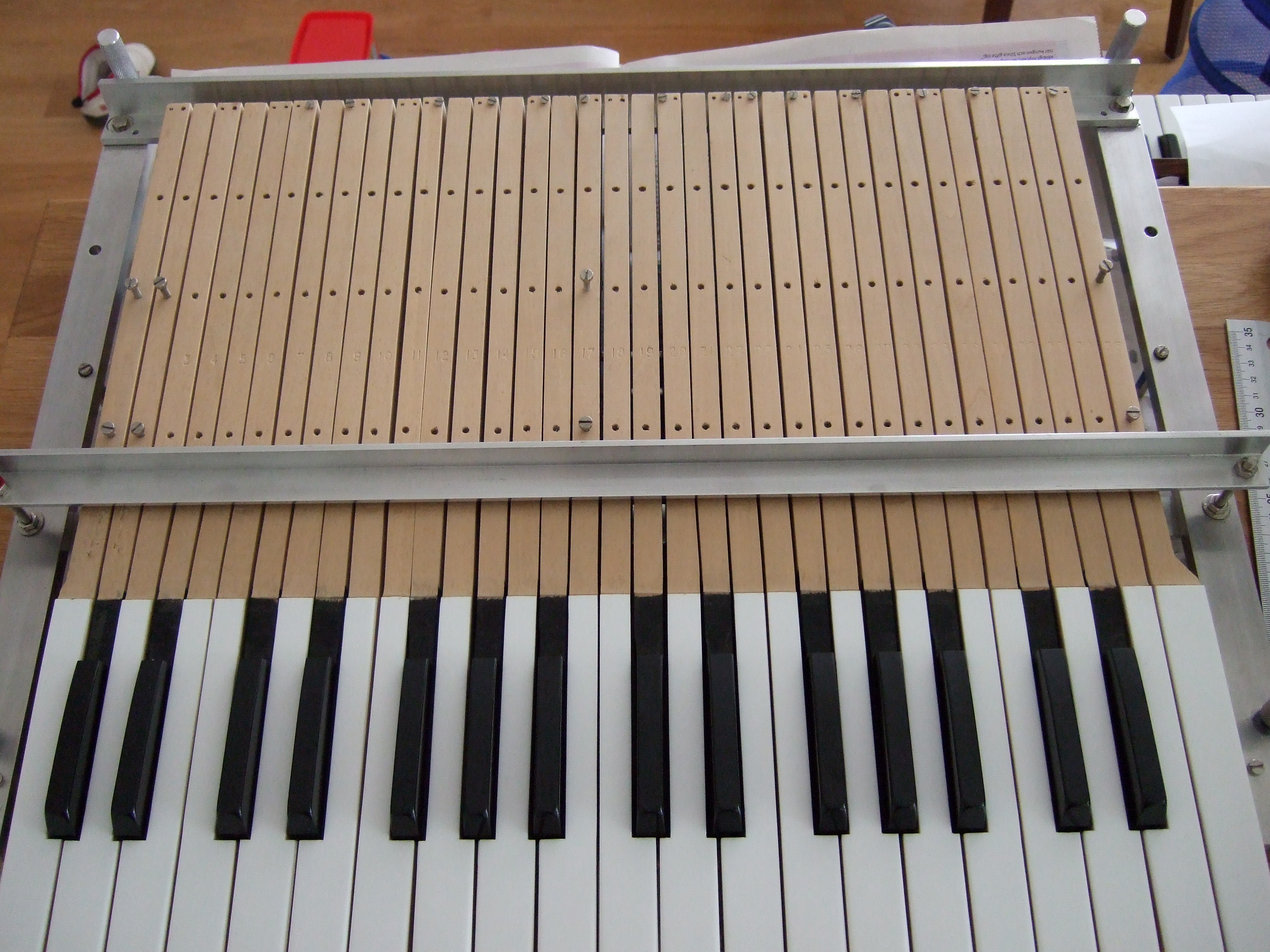

| The slow restoration of #851. | Assembled (kind of) keyboard. |
|
After some experimentation I cleaned the keys with a lightly damp cloth and then with a hard gum eraser. Sanding is far too drastic. |
| The slow restoration of #851. | Removing the paint. |
|
Very time-consuming.. |

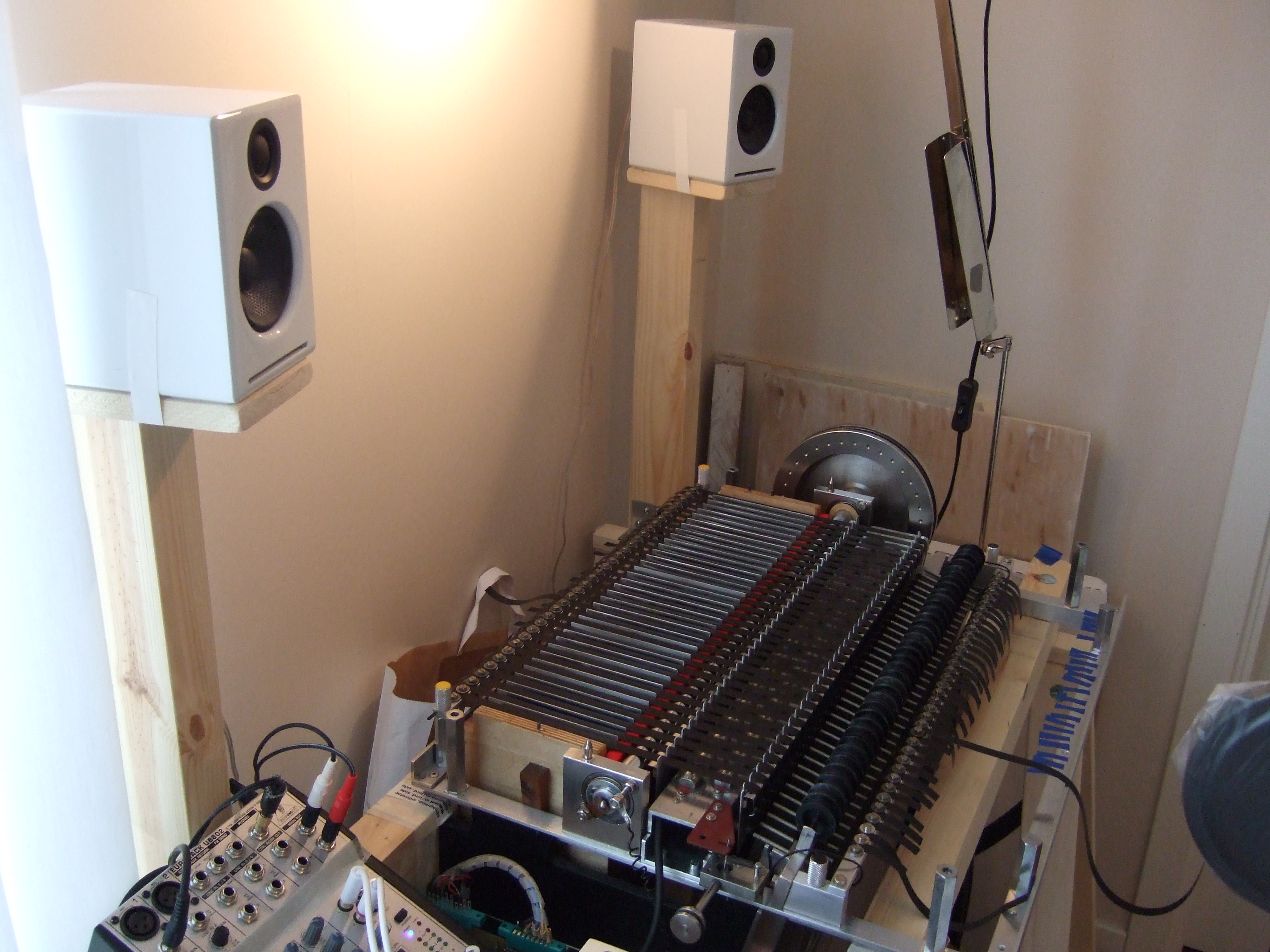

| The slow restoration of #851. | New or replaced stuff from Markus: |
|
tapes, rollers, belt, capstan felt, frame springs, pots, some padsprings, sms5 and one replaced head. D';feldt monitors. |
| The slow restoration of #851. | Off to the Mellotron factory.. |
|
for azimuthing. |

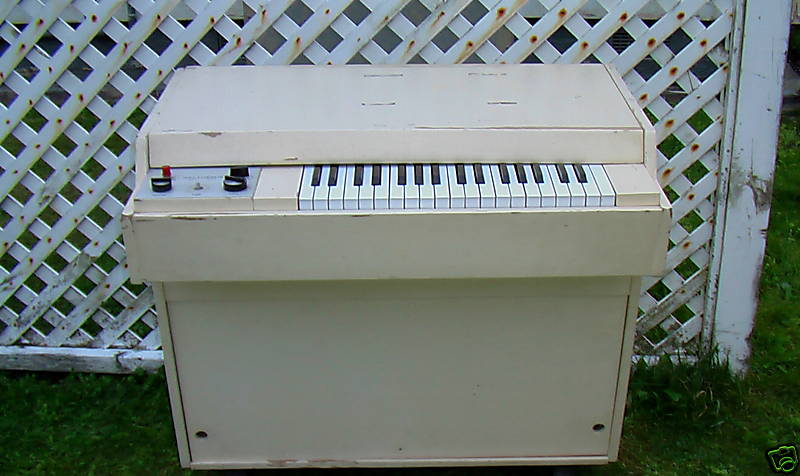

| The slow restoration of #851. | Ebay photo #2 2008. |
|
Warped lid in almost Wurlitzer beige.. |

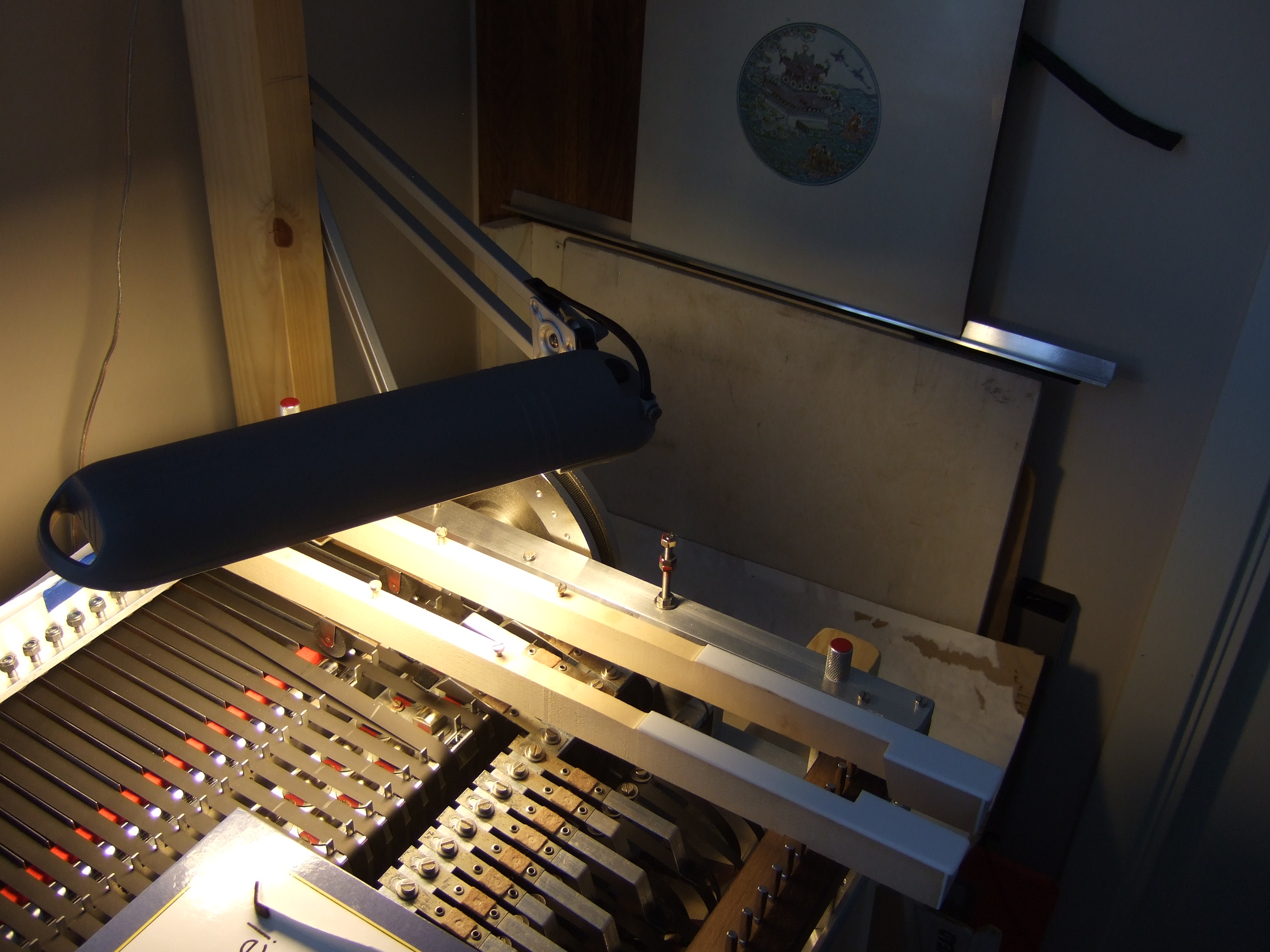

| The slow restoration of #851. | Adjusting pads for low pressure and.. |
|
immediate full sound on all three tracks. Takes forever to adjust.. for me that is. |

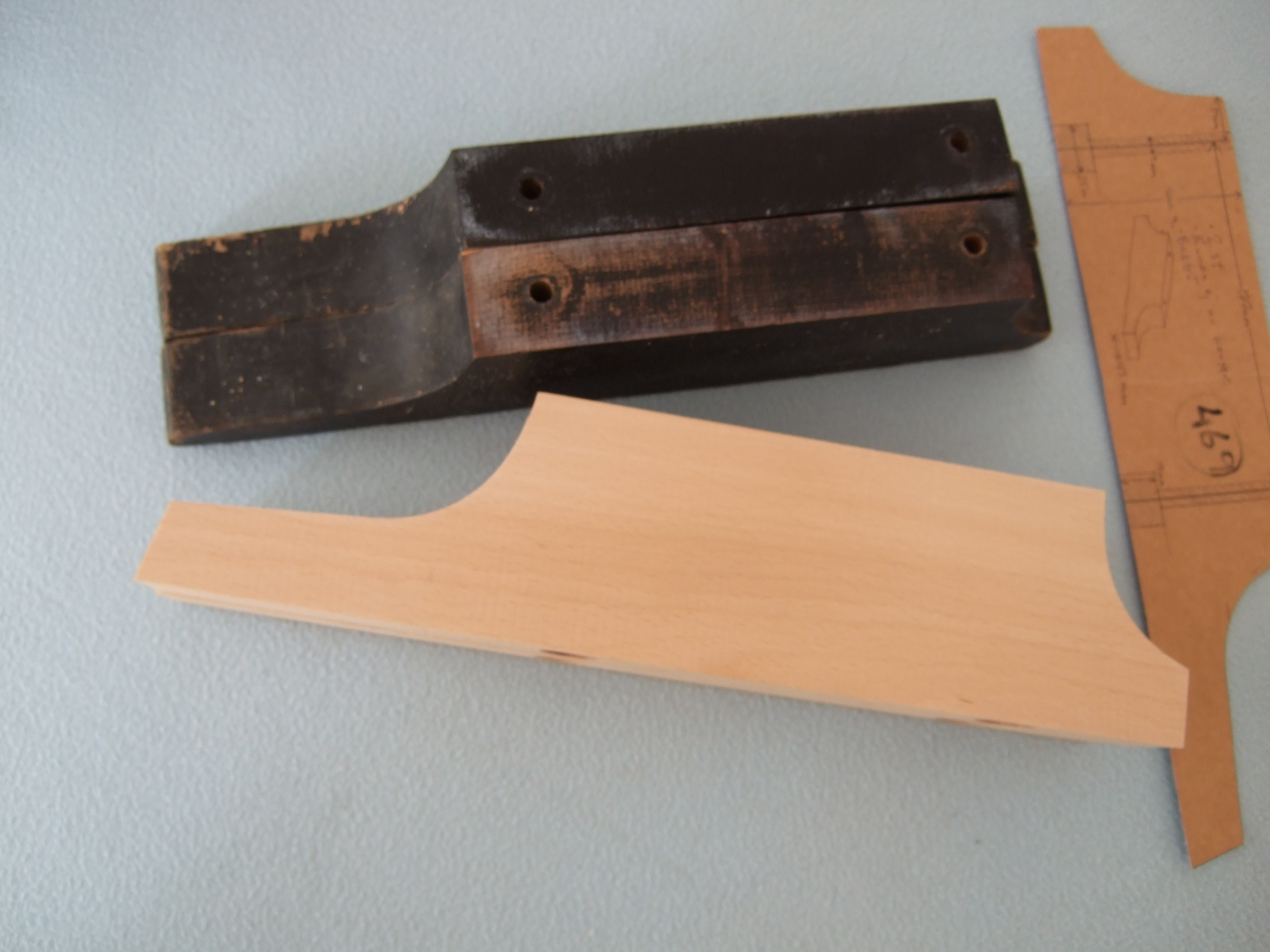

| The slow restoration of #851. | New beechwood feet modeled after.. |
|
the old twisted and rotten ones. |
| The slow restoration of #851. | painting thumb screws |
|
|
| The slow restoration of #851. | New bottom plate |
|
|
| The slow restoration of #851. | Off to the paint shop! |
|
"Nights in white lacquer, restoration reaching the end.." Sorry for that.. It has been a tough lesson in warping, weather sensitive woods. I'm real nervous about the paint guys screwing it up. |
| The slow restoration of #851. | At last.. |
|
Thanks Markus R, Frank S, Jerry K and Martin S for support, parts and inspiration. |
| The slow restoration of #851. | ..in MkVI white |
|
|
| The slow restoration of #851. | Awesome paint job |
|
|
| The slow restoration of #851. | teflon add-on rollers |
|
This is how I tackled the horrible turnbuckle/tape-return housing friction. I wanted MkII-type rollers in my frames but settled for these home made rollers instead. I have it on my five frames and it has worked flawlessly for two years now. |
| The slow restoration of #851. | new stainless steel profile |
|
I made some new stainless profiles for experiments with new angles to reduce friction. Didn't want to ruin the old one.. It's much better now but I'm still tweaking.. |
| The slow restoration of #851. | Legs for frames |
|
I don't like the idea to rest the frames on new and expensive springs so I made these add-on legs. Simple and functional. |
| The slow restoration of #851. | Added support blocks |
|
